Sensor 1.1
  • External sensor for the Net-PwrCtrl - HUT2, HUT2C & HUT3.
  • Temperature, humidity & brightness with high accuracy.
  • Connection (simple and cost-effective) via ethernet cable including power.

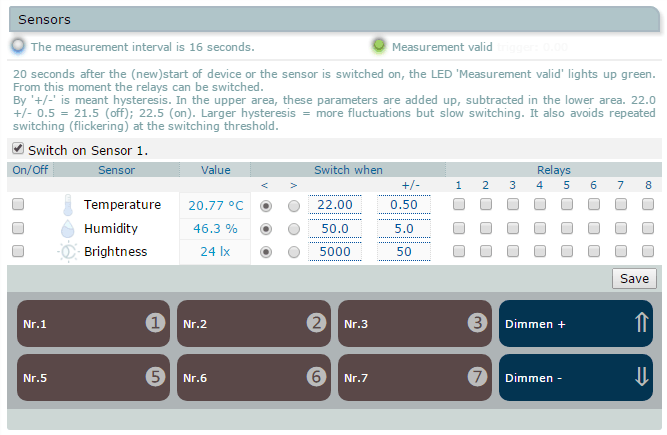

  • Adjustable hysteresis.
  • All relays controllable.
  • DIN Rail and 'wall' mounting.
Sensor

Measurement: Temperature Humidity Brightness
Sensor IC SHT21 SHT21 BH1750FVI
Operating Range -40 - 125 °C 0 - 100 %RH 0 - 65535 lx
Resolution 0.01 °C 0.04 %RH 1 lx

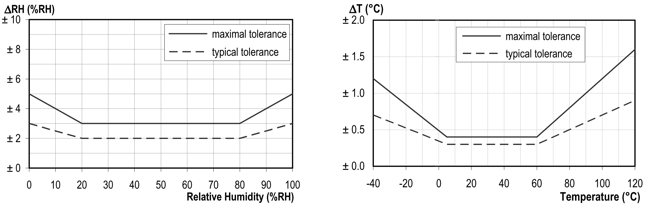

Accuracy tolerance ±0.3 °C ±2.0 %RH 1.2 (Sensor out / Actual lx
EV = 1000 lx)
Repeatability ±0.1 °C ±0.1 %RH 1 lx

Casing DIN Rail with wall holder for mounting without rail
Dimensions L90 B35 H31mm
Delivery: Sensor, RJ45 cable.
Installation Guide as PDF pdf
