from firmware version 7.0
  • HTML of the pages can be changed and loaded.
  • Automatic IP allocation: DHCP.
  • Start time (ready for operation) 3 seconds.
  • 8 - inputs or outputs - freely configurable with edge detection and toggle.
  • io

  • Automatic time setting from an SNTP server.
  • zeit

  • Call via hostname = http://net-control or IP.
  • Name/Position/Function with max. 35 characters.
  • Free choice of the HTTP port (0-65535), thus several devices can be accessed from the Internet.
  • 'HoldOn' Button: Relay or IO is activated as long as the key is held down. Two relays or IO's can thus be used for +/- control (e.g., dimmers).

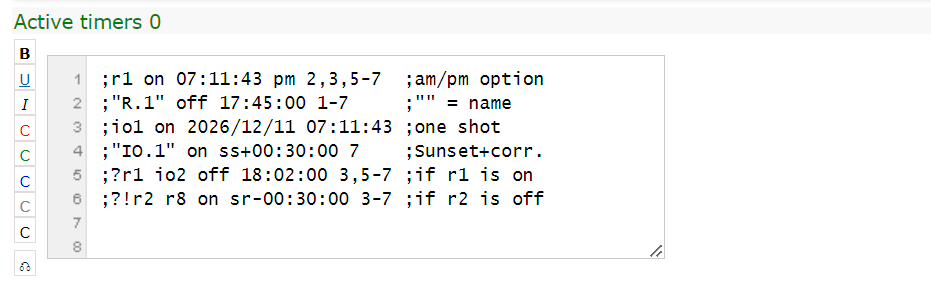

  • 30 timers relais/IO. Weekly timer, Sunrise/Sunset timer, One-Shot-Timer, If-Timer.
  • io

  • Exceptions (day / month). On selected days, all timers are skipped.
  • E-Mail function.
  • Backup system.
  • Keepalive function: A network device can be pinged and - should it not respond - be disconnected
    from the power supply for an adjustable time.
  • ka

  • Automatic and time-delayed (0-18.2h) switching on of the sockets after the start (power failure).
  • Switching can also be performed as pulse (0-65535 sec.).
  • Switching distance of the relays with simultaneous switching can be determined ((0-255) milliseconds).
    sv

  • Wake on LAN
  • wol

  • Sockets can be locked individually.

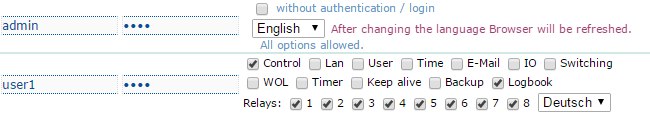

  • User system with rights.
  • user
  • Logbook of the last 128 events. Power failures are registered (remains without voltage).
  • UDP, URL & Batch interface for integration into own software.
  • Multi NET-PwrCtrl Controls all devices on the network (also as C# source code).
  • Firmware upgrade via Ethernet possible at any time (Ethernet Bootloader).
  • Sturdy DIN rail housing with the UL94V0 certificate.
